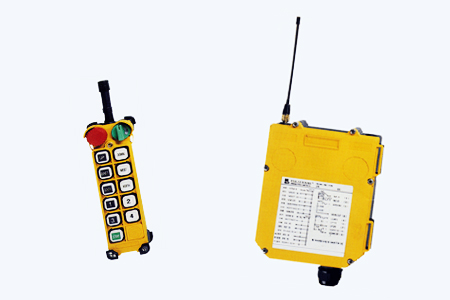

F24-10D 10 key remote control crane Double-speed (one year warranty)
This product is also known as: Industrial remote control, crane remote control, remote control traffic, Double-speed remote control, dual-beam traffic remote control.
The transmitter (handheld) Size: 18.6x6.1x5.1 cm
Weight: about 255 grams
Receiver
Size: 20x16.2x10.7 cm
Weight: 1220 g
* 10 function keys (two-stage button) mushroom head emergency stop + start + key + key rotation
* Control up to 23 points
* With battery voltage warning device, when the voltage is less than its own circuit.
* Security Turn the key switch to prevent unauthorized use.
* Nylon woven reinforced plastic casing to prevent fall and caused a strong impact
Damage.
Enhanced models equipped with two-stage button is sealed with a full integration of Double-speed keys, and last longer, feel better. Total stop buttons with a self-locking red "mushroom head" button, and further emphasized the overall safety factor.
* Up / down, east / west, north / south can be set whether to suppress each other. Full Double-speed button for easy operation Double-speed body
* Boot the computer is set to boot by Jian, acceleration, flick jump, ordinary functions.
* 1-4 Kin spare computer to be ordinary, interlock, flick jump, switches and other functions.
Control distance: up to 100 m
Security Code: 32 yuan (4.3 billion group)
Operating temperature: -35 ℃ to +80 ℃ (without regard to battery temperature)
Protection: IP65
Transmitter Power: DC 3V (two alkaline batteries can be used one month)
Receiver Power Supply: AC 380V/220V/48V optional (50/60HZ),
Or DC 12V/24V
Output contact capacity: 5 amp sealed relay output (AC 250V/10A relays 5 amp fuse).
Standard configuration:
* Transmitter 1 (with strap)
* Receiver 1
* The receiver comes with 1 m connection cable
* Operation and Maintenance Manual 1
For single hook / Double-speed, double hook / Double-speed driving cranes and 23 contacts with the following industrial remote control.
F24-10D output wiring diagram
|
