220-volt two-way remote control switch Manual Model: RJ-2KX -220
First, the main technical indicators
1, the working voltage: AC110-230V switching power supply design, energy-saving micro-power 2, receiving frequency: 315MHZ (other frequencies 299-433mhz)
3, work: you can change by learning key; interlock; jog; self-locking manner 4, coding matching method: learn coding, coding fixed by learning support
5, the maximum load: The 10A relay, can control the lighting and electrical equipment kilowatt 6, receiver sensitivity:-105db with different remote control distance of up to 50-400 m
7, radio coding technology, no direction, switches without disturbing each other. 8, two-way active output.
Second, the use of methods: 1) Output mode selection and learning methods: Press to any key on the remote control, the indicator should flash continuous learning, otherwise, the controller can not learn this remote control. First select output relearn remote control.
2) output mode selection: study has been pressing the button and hold for two seconds after learning indicator lights, another four seconds, learning changed from bright lights off (this step is the actual clearing operation). Continue pressing the button to learn, after two seconds, the indicator light will blink once; After another two seconds, blinks twice; flashes after another two or three seconds. Learning LED flashes once and release the button to learn, then output is interlocked manner; indicator flashes twice in the release button to learn, then the output is self-locking manner; indicator light flashes three times in the release button to learn , then the output is inching mode. 3) Remote control learning methods: Press and hold the button to learn, after two seconds, indicator lights, release the button to learn, either by pressing a key on the remote control to learn, learn indicator light will flash one time, which means that this key Learning to control the first road to success. Then press another button on the remote control to learn, learn indicator flashes three times off, this key learning control for the first two road to success. . The same type of fixed code remote control, remote control and the other first compiled the same code, you can control, can be arbitrary with multiple; different types of learning code remote control, repeat step 3 can be paired learning .

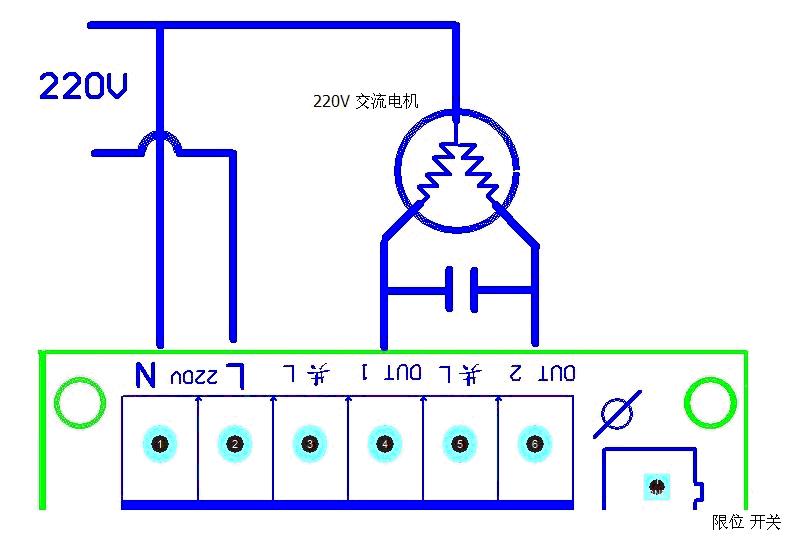

4) Clear learning code: study has been pressing the button and hold for two seconds after learning indicator lights, another four seconds, the learning will light becomes off, that cleared successfully. Before cleared after the paired remote no longer work. Three; General wiring diagram motor control
Four; controlling replace manual controls and cable complexity and crafts! Easy to use. . Mainly used: remote control electric doors, windows, switches, security lighting and other industrial or remote areas, remote motor reversing and stopping. Used to control lights, motors, etc.;
Note; another supporting can learn to use high security rolling code remote control or learning remote control and remote control encoder board size: 74 * 54 * 28MM
|
