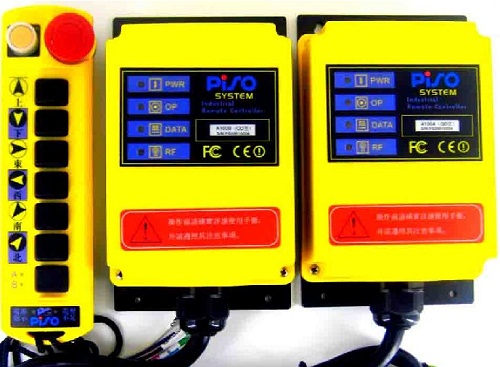

A six-way control two Industrial remote control to close the remote situation got two double remote control receiver
(QD type): Single-speed 6-point type, plus a multi-purpose function keys (can be set up A / B / A + B car features), push / unscrew the emergency stop button, close to 100M, receiving dual host.
System consists of two remote control transmitter and remote receiver.
System advantages to improve the safety and freedom of the operator.
Can also be controlled remotely close distance control in a safe place.
Improving the accuracy of the operation of the operator control device may include an accurate and precise positioning by fretting.
Ensure the continuity and convenience of operation in the whole process without blind spots appear, while the remote control transmitter portable, easy to use.
The need to improve the efficiency of production with several people to complete the work, with a wireless remote control system controls two systems, a person can easily get, greatly improving the efficiency and production efficiency.
A user can easily set the device to work independently, B equipment to work independently, or A, B devices simultaneously, and you can choose to display the results through an intuitive multifunction button next to the lights.
Technical Parameters
1, the operating frequency: FM419M (20CH)
2, launch distance: ≤ 100M
3, the transmitter Power supply: 9VDC (6F22)
4, Receiver Power Supply: 36V, 48V, 220V, 380V (special voltage Custom-made)
5, the output interface: Relay
6, the control action: 8 (dual control 12)
7, the receiving point: 360 ° non-directional
8, the remote transmitter power: ≤ 10MW
9, operating temperature: -20 ℃ ~ +65 ℃
10, relative humidity: ≤ 85%
The transmitter ergonomic, lightweight design, compact and lightweight, comfortable operation buttons accurate positioning function marked clear, clear sensitive keys, key strength is moderate and reasonable set of function keys, effectively prevent the misuse of communication signals indicate there is a clear battery alarm indication. When the power is less than the original charge of 3/5, it will slow flashing warning lights should be red status indicator. When in the different operating states, has a corresponding indication. Normal hair is green flashing status code when the "emergency stop" (STOP) is pressed, the red light flashes quickly
"Emergency stop" button easy operation overall appearance \ generous protection grade IP64
The receiver looks small, elegant protection class of IP65
Lead is clear, easy to install wiring to understand the whole function with the lights, clear, clear with power indicator, signal indicator, emergency instructions, instructions and turn off the code indicating concealed antenna, receiver sensitivity
Apply to a crane hoists require two separate operations or synchronous operation requirements of the occasion.
|
